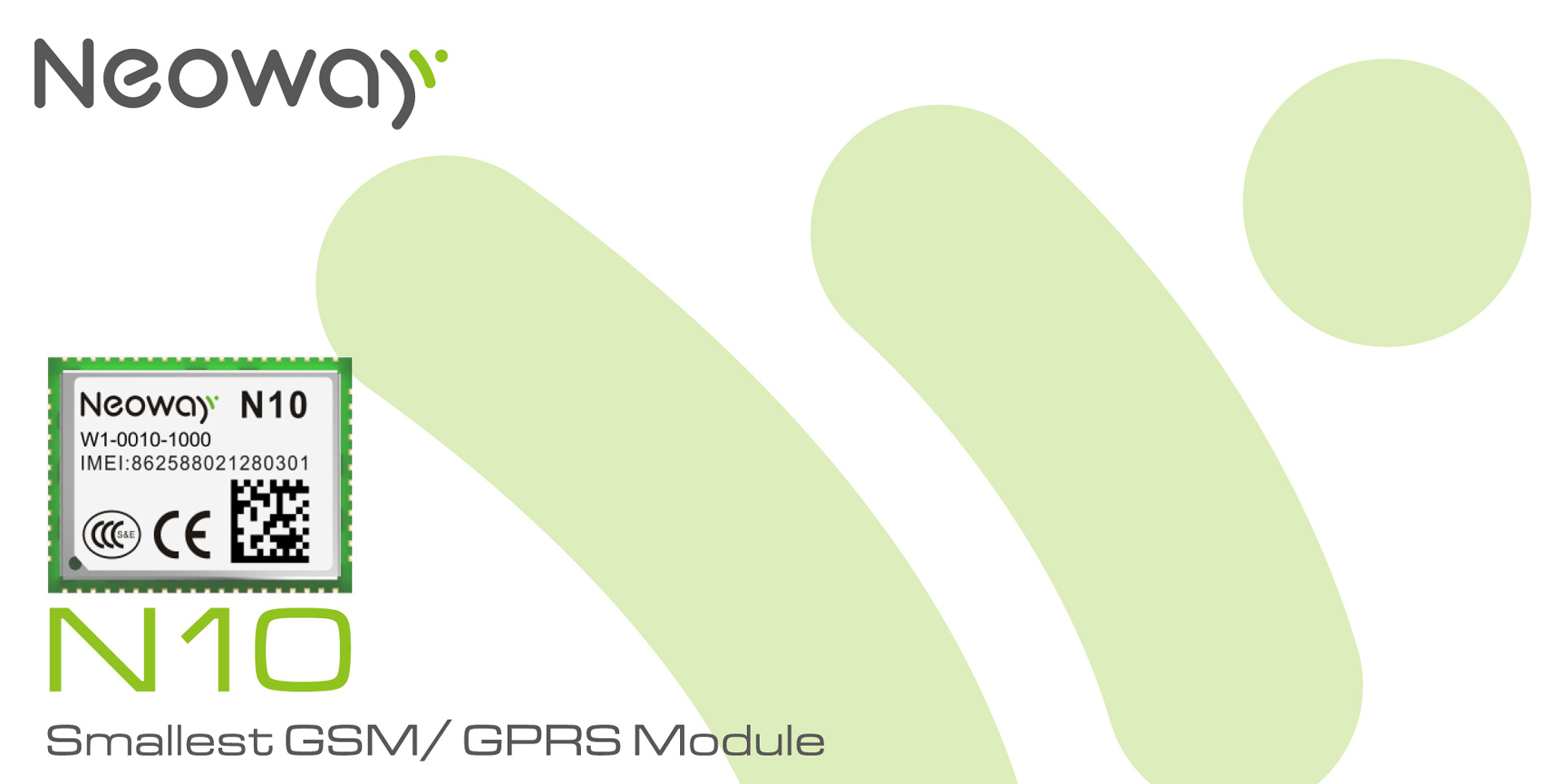

Neoway Released N10 Compact GSM/GPRS Module

Neoway released one of the smallest GSM/GPRS Module called N10 – 17×23.5×2.2mm.  It is ideal for M@M application such as MID, POS, Security Monitoring, AVL.

  • Quadband: 850/900/1800/1900 Mhz
  • GPRS Multi-Slot Class12: Max 85.6Kbit/s
  • Compliant to GSM phase 2/2+
  • Coding scheme CS1-CS4
  • Mobile Station Class A,B
  • USSD
  • SMS: Text/PDU   (Point tp Point/Cell Broadcast)
  • Voice: FR, HR, EFR and AMR
  • CMUX / LBS
  • Voltage: 3.5~4.3Volt(DC) – 3.9V Recommended
  • Sleep current: Less than 1.1mA
  • Package: LCC,64-pin, pitch 1.0mm
  • Size: 23.5x17x2.2mm
  • Operating Temp.: -40C to +85C
  • Certification: SRRC, CCC, CE, FCC, RoHS Compliant
